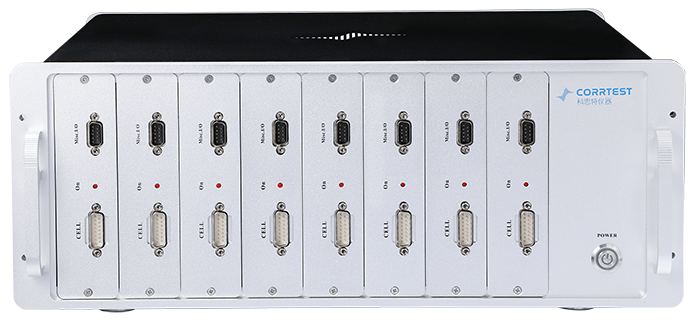

Corrtest Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.

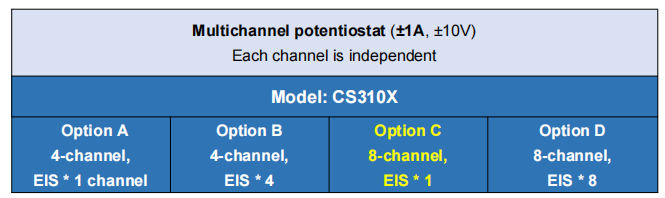

    Multichannel potentiostat/ galvanostat model CS310X (Option C) is the 8-channel potentiostat. And all the slots are occupied with potentiostat boards. It equals that you can have 8 sets independent potentiostat/galvanostat, and they’re integrated in one chassis.
    EIS module (10μHz~1MHz) is equipped one channel. Each channel potential control range is ±10V, current control range ±1A, can meet experiment requirement for most people.
    Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
    Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.

Advantages
High current/voltage: Applied potential range ±10V, current range ±1A. It can meet the needs of most studies.
Comprehensive techniques: Built-in EIS (10μHz~1MHz) is equipped in one channel. There are comprehensive techniques in each channel.
Warranty: 5 years warranty. We're the manufacturer, and our engineers will provide technical support anytime you need.
Low cost: The price includes instrument host, software(experiment control & data processing), necessary cables, dummy cell. No other charges.
Reliability &quality: We've been in the market for 20 years, and now is the No. 1 brand of potentiostat product in China

Application
-  Reaction mechanism of Electrosynthesis, electrodeposition (electroplating), anodic oxidation.
-  Electrochemical analysis, electro-catalysis, sensor;
-  New energy materials, advanced functional materials, photoelectronic materials;
-  Corrosion study of metals in water, concrete and soil etc;
-  Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.

Simultaneous Measurements
The customer can choose a same electrochemical technique in every channel. For example, among 8 channels, you can choose to run 4 channels to all do EIS measurement. Set the parameters just one time, then EIS measurement in each channel will be conducted at the same time.(Here is an example of using the 4 channels. You can run the 8 experiments at the same time on one window)

In each channel, you can also conduct different experiments.As is shown in the below picture, EIS, galvanostatic charge and discharge, CV, and polarization curve tests are conducted at the same time.(Here is an example of using the 4 channels. You can run the 8 experiments at the same time on one window)


Standard supply for Option C:
Instrument host *1
CS studio software package *1
Power cable * 1,
Ethernet cable *1
Cell/Electrode cable *16 PCS
Dummy cell *8 PCS

After-sales Service (All the service is totally FREE)
1. Warranty period: 5 years.
2. Provide manual, software installation video & training videos.
3. Free repair service
4. Lifetime software upgrading (same model) and technical service.

资料下载：Multichannel potentiostat (8-channel, EIS*1) model CS310X(Option C)

• Open Circuit Potential (OCP)

• Potentiostatic (I-T curve)

• Galvanostatic

• Potentiodynamic (Tafel plot)

• Galvanodynamic (DGP)

• Multi Potential Steps

• Multi Current Steps

• Potential Stair-Step (VSTEP)

• Galvanic Stair-Step (ISTEP)

• Chronopotentiometry (CP)

• Chronoamperametry (CA)

• Chronocaulometry (CC)

• Linear Sweep Voltammetry (LSV)

• Cylic Voltammetry (CV)

• Staircase Voltammetry (SCV)

• Square Wave Voltammetry (SWV)

• Differential Pulse Voltammetry (DPV)

• Normal Pulse Voltammetry (NPV)#

• Differential Normal Pulse Voltammetry (DNPV)

• AC Voltammetry (ACV)

• 2^nd harmonic AC Voltammetry (SHACV)

• Fourier Transform AC Voltammetry (FTACV)

• Potentiostatic Stripping

• Linear Stripping

• Staircase Stripping

• Square Wave Stripping

• Differential Pulse Voltammetry Stripping

• Normal Pulse Voltammetry Stripping

• Differential Normal Pulse Voltammetry Stripping

• Differential Pulse Amperometry (DPA)

• Double Differential Pulse Amperometry (DDPA)

• Triple Pulse Amperometry (TPA)

• Integrated Pulse Amperometric Detection (IPAD)

• EIS vs Frequency (IMP)

• Galvanostatic EIS

• EIS vs Potential (IMPE)(Mott-Schottky)

• EIS vs Time (IMPT)

• Galvanostatic EIS vs Time

• Cyclic polarization curve (CPP)

• Linear polarization curve (LPR)

• Electrochemical Potentiokinetic Reactivation (EPR)

• Electrochemical Noise (EN)

• Zero resistance Ammeter (ZRA)

• Battery Charge and Discharge

• Galvanostatic Charge and Discharge (GCD)

• Potentiostatic Charging and Discharging(PCD)

• Potentiostatic Intermittent Titration Technique (PITT)

• Galvanostatic Intermittent Titration Technique (GITT)

• Electrochemical Stripping/ Deposition

• Bulk Eletrolysis with Coulometry (BE)

• Rs Measurement

• Multichannel potentiostat CS310X Option C (8-channel, 1 EIS)
