Single-channel potentiostat (CS350M/ CS310M/ CS300M etc) can achieve maximum±2A/10V output when it’s used alone.

It's ±1A/10V for each channel of bipotentiostat (CS2350M/CS2150M) and multichannel potentiostat (CS310X).

When it requires higher current and higher applied voltage, we have power booster to meet this requirement.

The combination of a potentiostat and a CS5010B booster can achieve ±10A/50V output current/voltage.

-The combination is for applications of fuel cell, water splitting, cylindrical cell,pouch battery, and battery cell testing, etc.

Key specifications

Maximum applied current:  ±10A (AC/DC)

Maximum applied potential:  ±50V

Current range: 10A fixed

Compliance voltage: ±50V

EIS frequency range:  1μHZ~10kHz

Communication: RS485

Techniques

The techniques of the combination depends on the potentiostat that CS5010B connects to. A full-featured potentiostat includes the following functionalities:

Stable polarization: Open Circuit Potential (OCP), Potentiostatic (I-T curve), Galvanostatic,Potentiodynamic (Tafel plot), Galvanodynamic (DGP)

Transient Polarization: Multi Potential Steps,Multi Current Steps,Potential Stair-Step (VSTEP),Galvanic Stair-Step (ISTEP)

Chrono Method:Chronopotentiometry (CP), Chronoamperametry (CA), Chronocaulometry (CC)

Voltammetry: Linear Sweep Voltammetry (LSV), Cylic Voltammetry (CV), Staircase Voltammetry (SCV), Square Wave Voltammetry (SWV), Differential Pulse Voltammetry (DPV), Normal Pulse Voltammetry (NPV), Differential Normal Pulse Voltammetry (DNPV), AC Voltammetry (ACV), 2nd harmonic AC Voltammetry (SHACV), Fourier Transform AC Voltammetry (FTACV)

Electrochemical Impedance Spectroscopy: Potentiostatic EIS (Nyquist, Bode), Galvanostatic EIS, Potentiostatic EIS (Optional freq.), Galvanostatic EIS(Optional freq.), Mott-Schottky, Potentiostatic EIS vs. Time (Single freq.), Galvanostatic EIS vs. Time (Single freq.)

Corrosion Measurements: Cyclic polarization curve (CPP), Linear polarization curve (LPR), Electrochemical Potentiokinetic Reactivation (EPR), Electrochemical Noise (EN), Zero resistance Ammeter (ZRA)

Battery testing: Battery Charge and Discharge, Galvanostatic Charge and Discharge (GCD), Potentiostatic Charging and Discharging (PCD), Potentiostatic Intermittent Titration Technique (PITT), Galvanostatic Intermittent Titration Technique (GITT)

Amperometric: Differential Pulse Amperometry (DPA),Double Differential Pulse Amperometry (DDPA),Triple Pulse Amperometry (TPA),Integrated Pulse Amperometric Detection (IPAD)

Stripping Voltammetry:Potentiostatic Stripping,Linear Stripping,Staircase Stripping,Square Wave Stripping,Differential Pulse Voltammetry Stripping,Normal Pulse Voltammetry Stripping,Differential Normal Pulse Voltammetry Stripping

Extensions:Data Logger,Electrochemical Stripping/ Deposition, Bulk Eletrolysis with Coulometry (BE), Rs Measurement

Supply list of CS5010B

- CS5010B instrument

- Power cable

- Connection cable for communication(1.5m)

- Electrode connection cable(1.5m)

- WE/CE copper nose-copper nose electrode cable

- RE/SENSE potential sampling cable

-Tool kit

- High power dummy cell

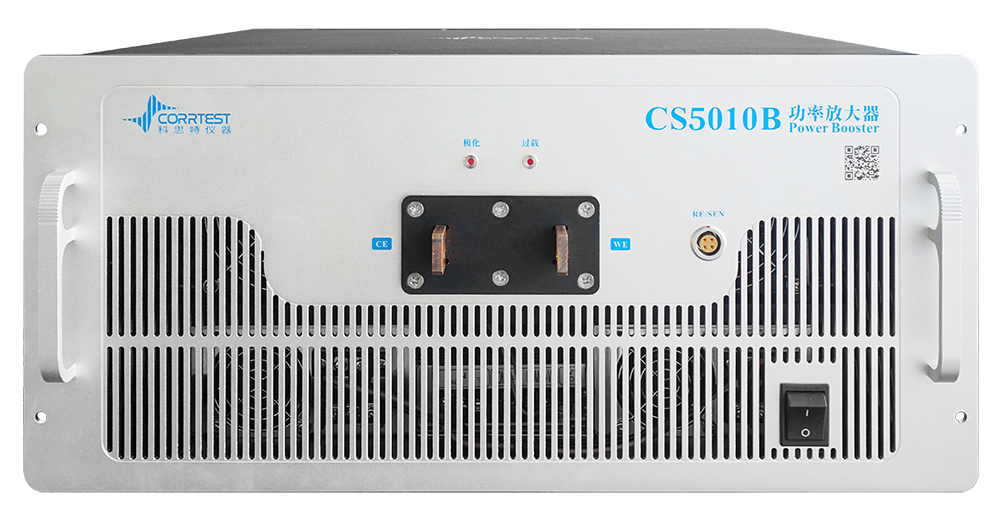

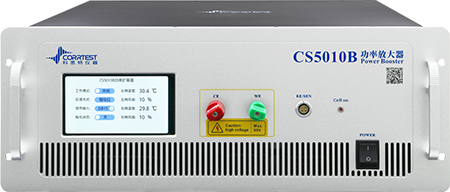

• CS5010B Power booster
