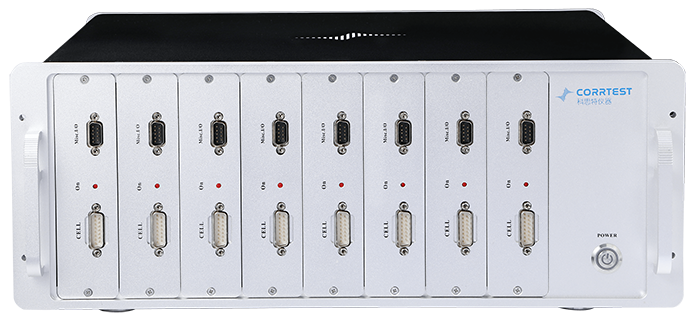

Corrtest Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.

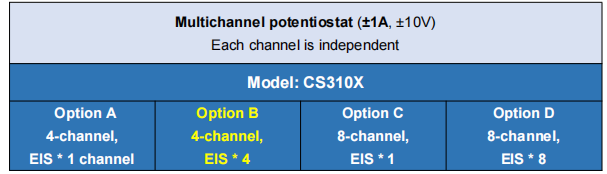

Multichannel potentiostat/ galvanostat model CS310X (Option B) is the 4-channel potentiostat. And you have 4 slots occupied with potentiostat boards and 4 slots idle for adding potentiostat board(s) to expand channels in the future. It equals that you can have 4 sets potentiostat/galvanostat, and they're integrated in one chassis independently.
EIS module (10μHz~1MHz) is equipped all 4 channels. Each channel potential control range is ±10V, current control range ±1A, can meet experiment requirement for most people.
Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.
.png)

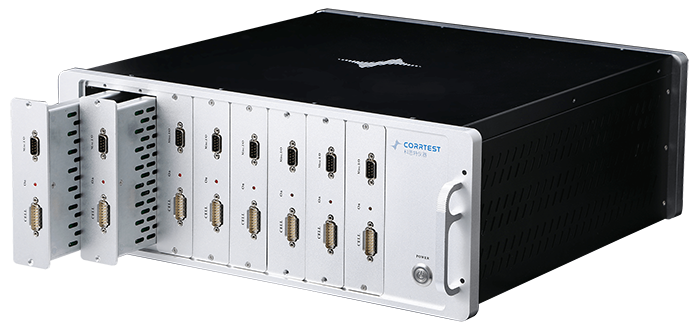

The number of channels is expandable by adding and installing more boards, thanks to the intelligent chassis and plug-in design.
Applications
(1) Reaction mechanism of Electrosynthesis, electrodeposition (electroplating), anodic oxidation, etc.
(2) Electrochemical analysis and sensor;
(3) New energy materials, advanced functional materials, photoelectronic materials;
(4) Corrosion study of metals in water, concrete and soil etc;
(5) Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.
Advantages
High current/voltage: Applied potential range ±10V, current ±1A. It can meet the needs of most studies.
Comprehensive techniques: Built-in EIS (10μHz~1MHz) is equipped in all the 4 channels for Option B. There are comprehensive techniques in each channel.
Warranty: 5 years warranty. We're the manufacturer, and our engineers will provide technical support anytime you need.
Low cost: The price includes instrument host, software (experiment control & data processing), necessary cables, dummy cell. No other charges.
Simultaneous Measurements
In each channel, the customer can conduct an experiment in each channel at the same time. This is especially useful if you have multi samples to be tested, and it will reduce your time greatly.
You can run a same experiment for each channel at the same time. Set the same parameters for each experiment once and run all independently. It's especially useful when you have many samples for one single test.
You can also choose different experiment in each channel. Set the parameters for each experiment, and run each experiment independently.
''
资料下载：Multichannel potentiostat (4-channel, EIS*4) model CS310X(Option B)
