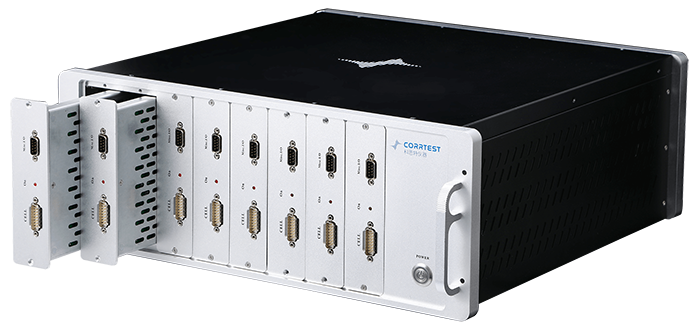

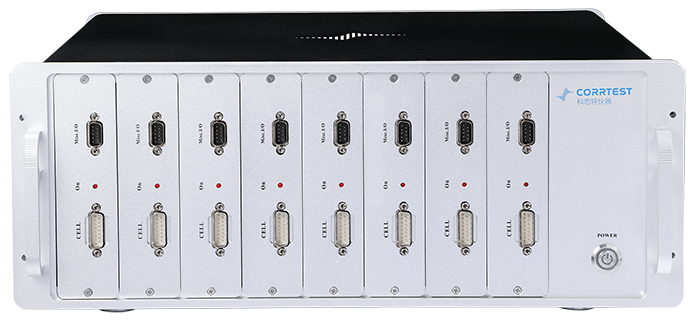

Corrtest Multichannel potentiostat/ galvanostat/EIS is a versatile instrument offering 8 slots.
    Multichannel potentiostat/ galvanostat model CS310X (Option A) is the 4-channel potentiostat. And you have 4 slots occupied with potentiostat boards and 4 slots idle for adding potentiostat board(s) to expand channels in the future. It equals that you can have 4 sets potentiostat/galvanostat, and they’re integrated in one chassis independently. EIS module (10μHz~1MHz) is equipped one channel. Each channel potential control range is ±10V, current control range ±1A, can meet experiment requirement for most people.
    Full floating module and electrical isolation design guarantee each channel is totally independent, which ensures accurate data and efficient simultaneous measurements.
    Multichannel potentiostat brings convenience to those who have many samples, and is an ideal device for studies of energy materials, battery study, metal corrosion etc.

The number of channels is expandable by adding and installing more boards, thanks to the intelligent chassis and plug-in design.

Applications
(1) Reaction mechanism of Electrosynthesis, electrodeposition (electroplating), anodic oxidation, etc.
(2) Electrochemical analysis and sensor;
(3) New energy materials, advanced functional materials, photoelectronic materials;
(4) Corrosion study of metals in water, concrete and soil etc;
(5) Fast evaluation of corrosion inhibitor, water stabilizer, coating and cathodic protection efficiency.

Advantages
High current/voltage: Applied potential range ±10V, current ±1A. It can meet the needs of most studies.
Comprehensive techniques: Built-in EIS (10μHz~1MHz) is equipped. There are comprehensive techniques in each channel.
Warranty: 5 years warranty. We're the manufacturer, and our engineers will provide technical support anytime you need.
Low cost: The price includes instrument host, software (experiment control & data processing), necessary cables, dummy cell. No other charges.

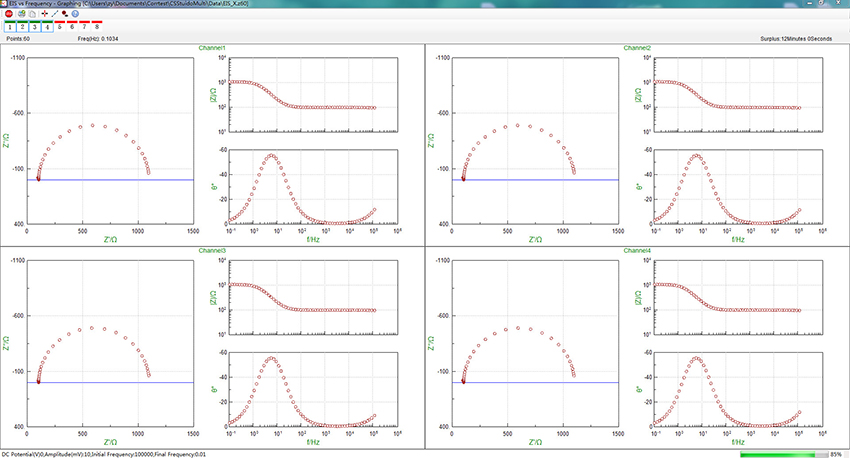

Simultaneous Measurements
You can run a same experiment for each channel at the same time. Set the same parameters for each experiment once and run all independently. It's especially useful when you have many samples for one single test.(Just for example, there is only one channel including EIS for Option A).

You can also choose different experiment in each channel. Set the parameters for each experiment, and run each experiment independently.


''

资料下载：Multichannel potentiostat (4-channel, EIS*1) model CS310X(Option A)

Standard supply for Option A:
Instrument host *1
CS studio software package *1
Power cable * 1,
Ethernet cable *1
Cell/Electrode cable *8
Dummy cell *4

After-sales Service (All the service is totally FREE)
1. Warranty period: 5 years.
2. Provide manual, software installation video & training videos.
3. Free repair service
4. Lifetime software upgrading (same model) and technical service.

• Open Circuit Potential (OCP)

• Potentiostatic (I-T curve)

• Galvanostatic

• Potentiodynamic (Tafel plot)

• Galvanodynamic (DGP)

• Multi Potential Steps

• Multi Current Steps

• Potential Stair-Step (VSTEP)

• Galvanic Stair-Step (ISTEP)

• Chronopotentiometry (CP)

• Chronoamperametry (CA)

• Chronocaulometry (CC)

• Linear Sweep Voltammetry (LSV)

• Cylic Voltammetry (CV)

• Staircase Voltammetry (SCV)

• Square Wave Voltammetry (SWV)

• Differential Pulse Voltammetry (DPV)

• Normal Pulse Voltammetry (NPV)#

• Differential Normal Pulse Voltammetry (DNPV)

• AC Voltammetry (ACV)

• 2^nd harmonic AC Voltammetry (SHACV)

• Fourier Transform AC Voltammetry (FTACV)

• Potentiostatic Stripping

• Linear Stripping

• Staircase Stripping

• Square Wave Stripping

• Differential Pulse Voltammetry Stripping

• Normal Pulse Voltammetry Stripping

• Differential Normal Pulse Voltammetry Stripping

• Differential Pulse Amperometry (DPA)

• Double Differential Pulse Amperometry (DDPA)

• Triple Pulse Amperometry (TPA)

• Integrated Pulse Amperometric Detection (IPAD)

• EIS vs Frequency (IMP)

• Galvanostatic EIS

• EIS vs Potential (IMPE)(Mott-Schottky)

• EIS vs Time (IMPT)

• Galvanostatic EIS vs Time

• Cyclic polarization curve (CPP)

• Linear polarization curve (LPR)

• Electrochemical Potentiokinetic Reactivation (EPR)

• Electrochemical Noise (EN)

• Zero resistance Ammeter (ZRA)

• Battery Charge and Discharge

• Galvanostatic Charge and Discharge (GCD)

• Potentiostatic Charging and Discharging(PCD)

• Potentiostatic Intermittent Titration Technique (PITT)

• Galvanostatic Intermittent Titration Technique (GITT)

• Electrochemical Stripping/ Deposition

• Bulk Eletrolysis with Coulometry (BE)

• Rs Measurement

• Multichannel potentiostat CS310X(4 CH, 1 EIS))
